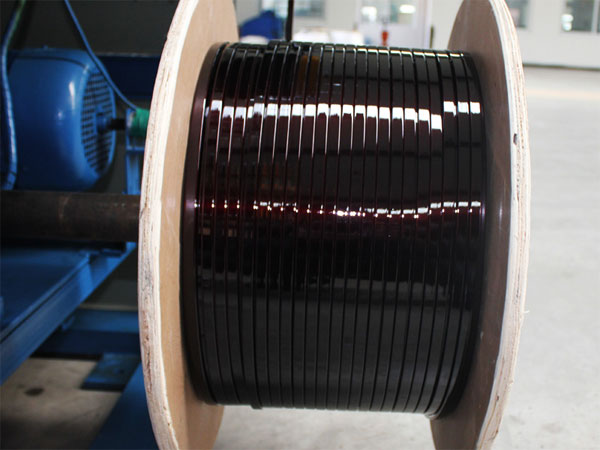

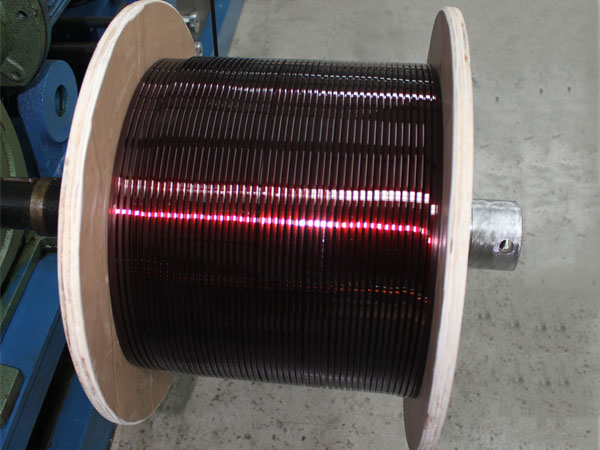

Enameled Flat Copper Wire

  • Min.Order Quantity: 300 Kilogram/Kilograms
  • Brand: LP-QLX
  • Rectangular Wire:: a:1mm-10mm b: 3mm-16mm
  • Thermal Class : B 130 F 155 H 180 H+/C 200 C+ 220

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Follow Us :
  • Enameled Flat Copper Wire
  • Enameled Flat Copper Wire
  • Enameled Flat Copper Wire
  • Enameled Flat Copper Wire
  • Enameled Flat Copper Wire
■ Overview

1.Brand: LP-QLX enameled-flat-copper-wire
2.Diameter Rectangular Wire:a:1mm-10mm b: 3mm-16mm
3.Thermal Class :B 130 F 155 H 180 H+/C 200 C+ 220
4.Standard :IEC60317-26, MW18-C, GB6109.14, JCS334
5.Packing: Inner packing: Different plastic spools according to wire sizes
Outer packing: Carton/wooden box or as customer required
6.Application: Fan, air-conditioner, electric motor, washing-machine, micro-motor, pump, dry-type transformer, oil transformer.
And other windings in electrical tool
enameled-flat-copper-wire 7.Features: Natural color with zero defects in production
Excellent resistance to abrasion and solvent, excellent electricity
8.Main Export market: Hongkong, Singapore, Indonesia, Sri Lanka, Vietnam,
Thailand, Turkey, UK, Hungary, Romania, Croatia, Greece, Egypt, USA,
Canada, Brazil, Argentina, Zambia, Colombia, Dominican republic...

■ Benefit
Enameled Type Polyester Modified Polyester polyester-imide Polyamide-imide polyester-imide
/Polyamide-imide
Products type PEW/130 PEW/155 EIW/180 EI/AIW/200 EIW(EI/AIW)/220
Temp Class 130 155 180 200 220
Insulation Grade Grade1/Grade2 Grade1/Grade2 Grade1/Grade2 Grade1/Grade2 Grade1/Grade2
Standard IEC,NEMA,JIS,GB or according to customers’ requirements
